180 Degree Tape Peel Tester

Model:BLJ-C
Brand:Sumspring



BLJ-C180 Degree Tape Peel Tester can be used for test peeling, stripping and other performance of adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandage, protection films, release paper, laminated films, films and paper.

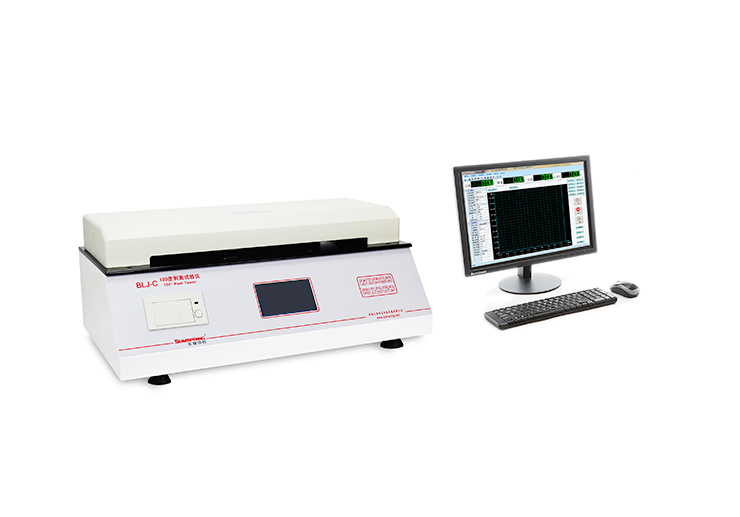

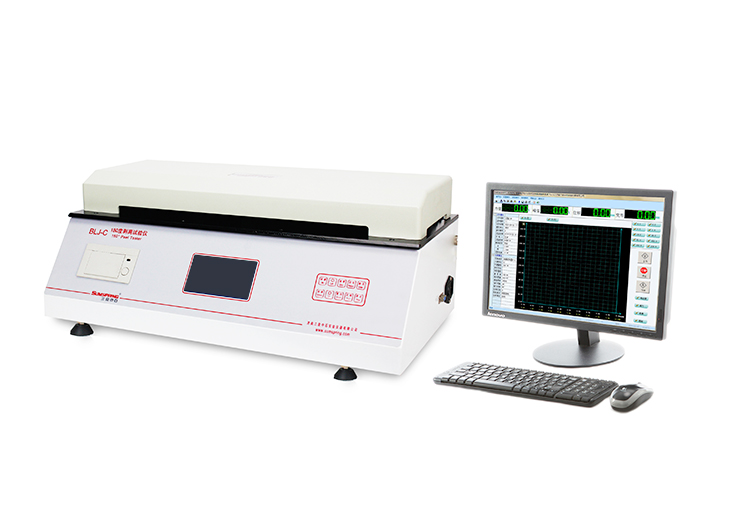

180 Degree Tape Peel Tester BLJ-C



Test principle

Place test sample face to the standard test plate, rolling three times with a standard pressure roller , place a while, then clamping on the tape peel tester, peel test specimens from plates in the form of 180 ° , the force sensor records valuer during the peeling progress.



Application

Name

Application

Adhesive tape

It is used for test 180 degree peeling force for adhesive tape, label, protective film, etc.

Medical adhesive tape

Detection of 180 degree peeling force for medical adhesive tape.

Pressure sensitive adhesive

180 Degree Tape Peel Tester is used for test peeling force for adhesive and other related products.

Medical patch

It is used for the detection of the medical patch adhesion testing



Technical Feature

★Microcomputer control, large LCD, PVC operation panel
★Horizontal structure, sensor values without affecting the weight of the fixture
★Micro-printer output data fast, user-friendly storage
★Infinitely variable, tape peel tester meet a variety of test standards
★180 Degree Tape Peel Tester with a test force value hold function, see the results more convenient
★Metal buttons, durable



Main Specifications

TECHNICAL SPECIFICATIONS

Standard Roller

2000g±50g

Top Test Load

30N(Range can be customized)

Valid Range

2%-100%FS

Resolution

0.001N

Accuracy

1 FS

Test Speed

1-500 mm/min (Step Less)
Displacement Resolution 0.01mm

Speed Accuracy

≤±2%

Sample Width

0<L≤30mm

Dimension

550mm×370mm×240mm

Net weight

28kg

ENVIRONMENT REQUIREMENT

Temperature

15℃-30℃

Relative Humidity

No more than 80%,no dewdrop

Power Supply

220V,50Hz



Standard
ASTM D3330,QB/T 2358GB 4850,GB 7754,GB 8808,GB 13022,GB 7753,GB/T 17200,GB/T 2790,GB/T 2791,GB/T 2792



Configuration

Standard Configurations: Mainframe, Sample Grips, Micro Printer, Standard Pressure Roller and Test Panel
Optional Configurations:  Professional Software and Communication Cable





Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
