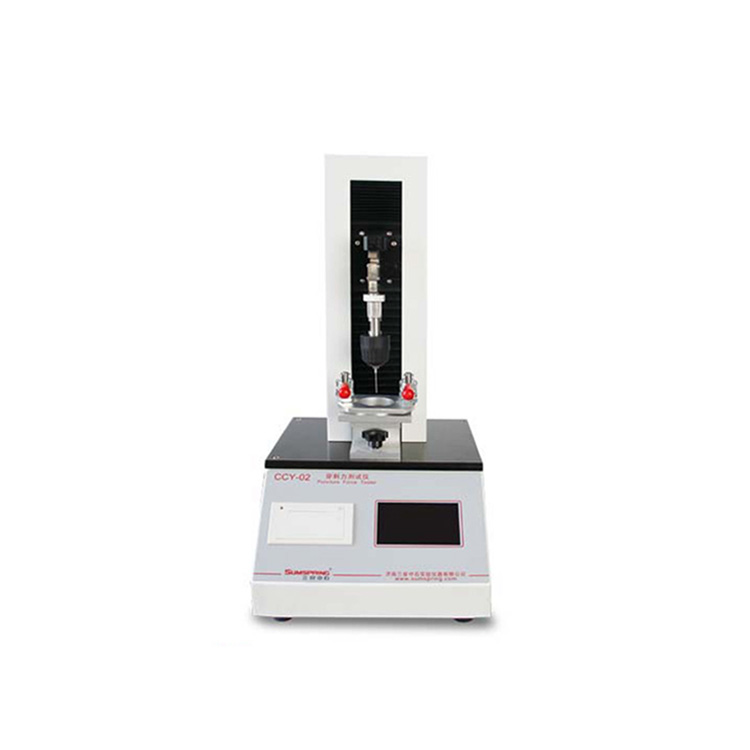

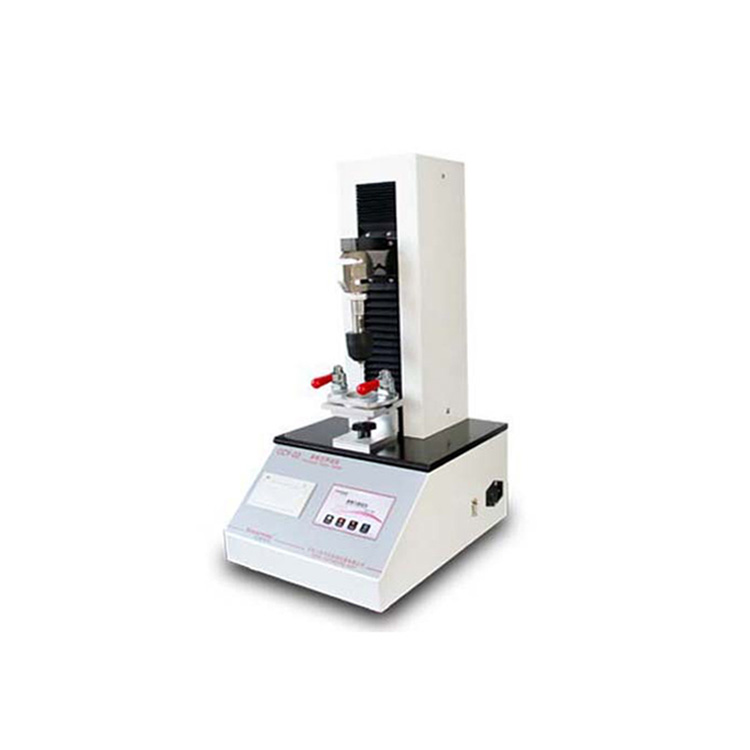

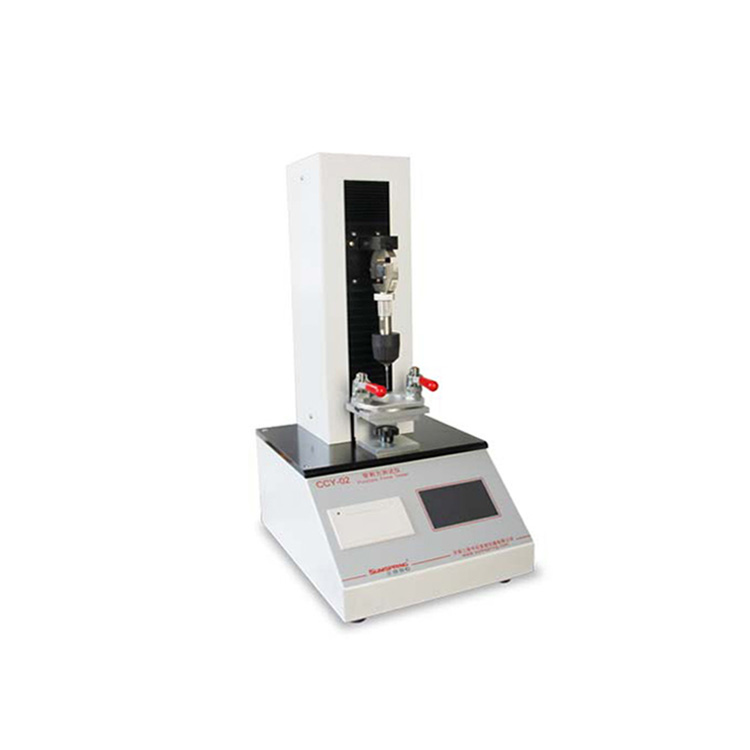

Puncture Force Tester

It can be used to test the puncture strength of various kinds of films, composite films, artificial skin, Infusion needle, injection needle, acupuncture and moxibustion needle，rubber plug for drug packaging, combination cover, oral liquid cap, etc. It is widely used in quality inspection institutions, drug inspection institutions, packaging plants, pharmaceutical factories, food factories and other units.

Technical Characteristics

★The large LCD touch screen displays the test process. Without the help of a computer, the host computer can operate independently. The test results can be stored and queried. The tedious need to connect the computer for each test is saved. The user can export the test data regularly.

★Imported sensor system, test accuracy in the industry far ahead, effectively ensure the accuracy of the test results.

★The puncture force and pull-out force can be tested at the same time.

★The speed of lead screw drive system can be adjusted at will to ensure the accuracy of test speed and displacement.

★Equipped with micro printer, it can print equipment serial number, sample batch number, laboratory personnel, test results, detection time and other complete test information.

★Professional humanized fixture, can be changed at will, suitable for different sizes of samples.

★One machine can meet the requirements of different standards for puncture force test.

★The instrument has sufficient password protection level (Level 3 authority), and each operator has a unique login name and password combination to enter the instrument operation.

★Meet the GMP requirements of local data storage, automatic processing, statistical test data functions, and can not be modified to delete the format of export, to ensure the permanent storage of test results.

★With sumspring test system, the original data can be backed up on the computer in the form of unchangeable database, and then exported to PDF format.

Technical Parameter

Reference standard

ISO 7864  ISO9626  GB/T10004、YBB00322004-2015、YBB00102005-2015、YBB00342002-2015、YBB00112005-2015、YBB00242004-2015、GB15811

Product configuration

Standard configuration: mainframe, micro printer, puncture force clamp

Optional: sumspring link DMS test system
