Paper Softness Tester

Model:RRD-1000
Brand:Sumspring



RRD-1000 paper soft tester adopt microcomputer control technology, touch screen can display the experiment curve automatically, easy to operate, high precision, is widely used in papermaking, hygiene products, cigarettes, and quality control and other industries.

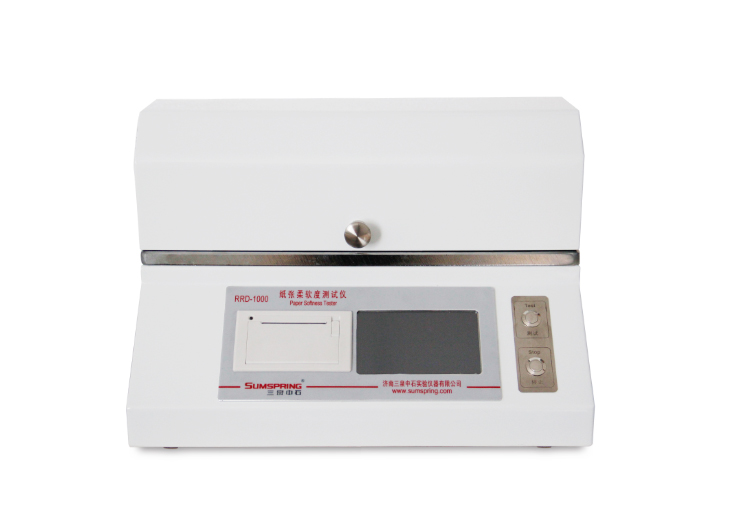

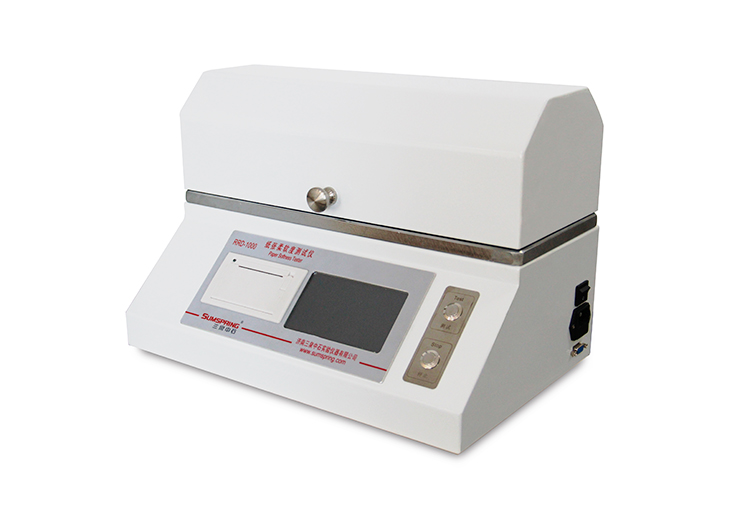

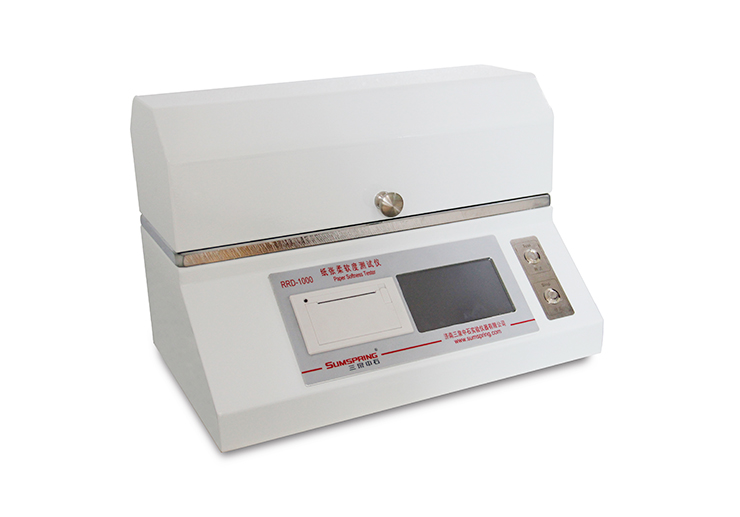

Paper softness tester RRD-1000



Application

It is used for test the softness of high-grade toilet paper, tobacco sheet, non-woven fabrics, sanitary towel, baby pull-ups,diaper ,Kleenex, film, textile, and scrim.



Product

Name

Application

IMG_257

Tissue

Paper softness tester is used for test softness for Tissue

IMG_258 High-grade toilet paper It is used for test softness of high-grade toilet paper
IMG_260 Wet wipes / Non woven  Used for test softness of wet wipes Dry towel


IMG_259



Diaper It is used for test softness of diaper



Technical feature

★ Microcomputer processing system, user-friendly

★Large LCD touch screen display, the entire experimental curves show at a glance

★High-performance microcomputer, high-precision sensor

★Micro-printer output, to facilitate rapid data output

★Can choose different test gap according to different standards, selectable fast measurement mode

★Results have statistical functions, user-friendly evaluation



Main Specification

Technical parameter

Test range

10 ~ 1000mN

Resolution

1mN

Indication Error

±1%(Below full scale’s 20%, the error allowed > 1mN)

Indication Repeat Error

<3%(Below full scale’s 20%, the error allowed > 1mN)

Test Speed

1.2mm/s

Probe Indentation Depth 8±0.5mm
Platform Slit Width 5mm, 6.35 mm, 10 mm, 20 mm (±0.05mm)
Sample Size 100*100mm
Instrument Size 240mm×300mm×280mm
Weight 12kg



Standards
ASTM D 2923-95 < Test Method for Rigidity of Polyolefin Film and Sheeting>
TAPPI T 498 cm-85 <Softness of Sanitary Tissues>
IST 90-3(95) <Standard non-woven fabrics - stiffness testing method - Handle-o-meter>



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
