Home    Adhesive products tester    Lasting Adhesive Tester

Lasting Adhesive Tester

Model:CNY-06S
Brand:Sumspring



Lasting adhesive tester CNY-06S used for test holding adhesive force for adhesive tape, labels, protective films. Six-station design could test six samples tested at the same time. Automatic timing may also be turned into a fully automatic hold stick instrument, widely used in adhesives products manufacturers, quality inspection agencies and other units.

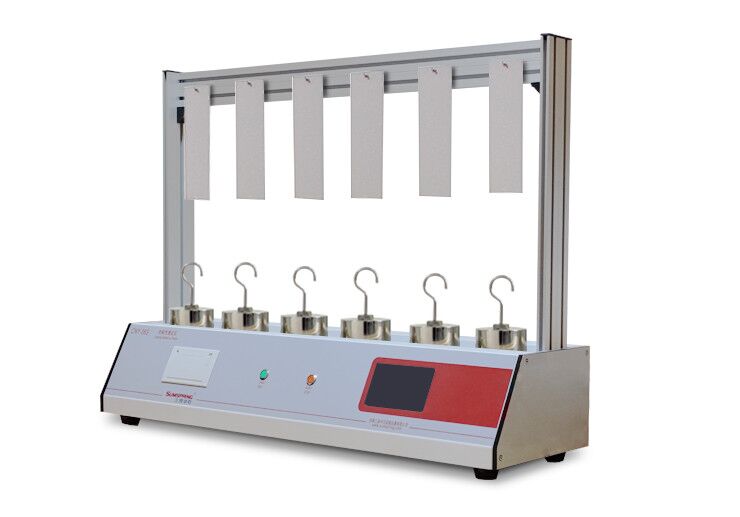

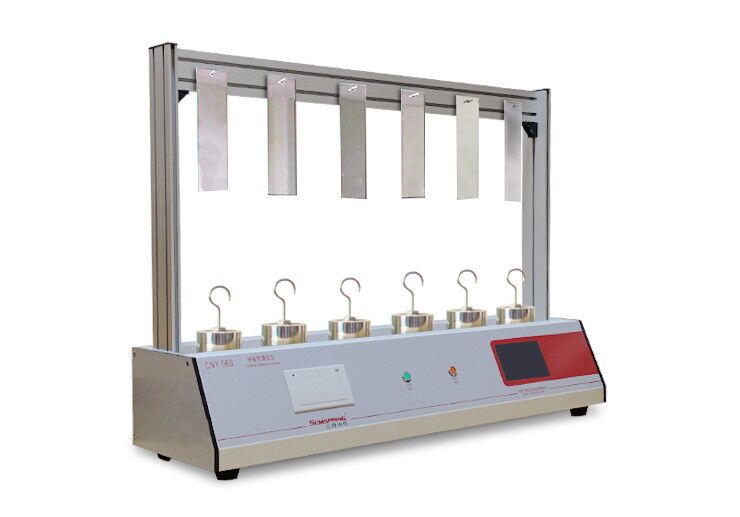

Lasting adhesive tester CNY-06S



Test principle

The sample test plates affixed vertically hanging in the test stand, test the displacement value of sample after a certain time by hanging weight on the bottom; or test adhesive tape pulled off resistance performance by the time sample completely break away .



Application

Name

Application

Adhesive tapes

Used for test holding adhesive force for adhesive tape, labels, protective films

Medical tape Lasting adhesive tester used for test holding adhesive force for adhesive tape, labels, protective films,medical tape
Adhesive It is used for test holding adhesive force for adhesive tape, labels, protective films,medical tape

Medical patch

Test holding adhesive force for adhesive tape, labels, protective films,medical tape
Diaper Waist patch It is used for test holding adhesive force for adhesive tape,Diaper Waist patch,waist tape



Technical feature

★Large touch screen testing process, without the help of computers, the host can operate independently, and can store and query test results, eliminating the tedious need to connect computers in each test.

★Equipped with micro printer, it can print complete test information such as equipment serial number, sample batch number, experimenter, test result, test time, etc.

★The test board and weights designed strictly in accordance with the standard ensure the accuracy of the test data.

★Six test stations can carry out multiple test projects at the same time.

★The functions of automatic timing and end reminder further ensure the high accuracy of test results.

★The instrument can store no less than 100 sets of data, each of which contains 6 data sets.

  • ★The system program has ISP online upgrade function and can provide personalized service.



Main Specification

Technical parameter

Standard Roller

2000g±50 g

Weight

1000g500g200gOne option

Test Broads

125(L)×50(W)×1.1(D)mm

125Lx125Bx2Dmm

Timing Range

0~199.99Hours

Machine size

620mmX260mmX420mm

Weight

11Kg

Environment requirements

Environment temperature

15℃-50℃

Relative humidity

No more than 80%,no dewdrop

Power supply

220V,50Hz



Standards

ASTM D3654,JIS Z0237,Pharmacopoeia 2021,GB/T 4851,YY/T 0148 ASTM D3654,GB/T23260



Configuration

Adhesive tester host, Standard Pressure Roller, Breadboard six pairs,Weight6



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
