Thickness tester

Model:CHY-HS
Brand:Sumspring



Thickness Tester CHY-HS is used for test thickness for various hard and soft materials, such as plastic films, sheets, paper, foils and other materials within 2mm thickness.Fully automatic test mode, both continuous measurement and point measurement mode available, equipped with imported high precision sensor can make the test resolution up to 0.0001mm (0.1 microns).

Sumspring company specializes in the development of software testing analysis system, can clearly show the thickness of the material floating, convenient user accurate understanding of the measured material uniformity. CHY-HS thickness tester is a super high test accuracy of the full automatic thickness measuring instrument, is widely used in quality inspection agencies, film manufacturers, photovoltaic plant and other units.

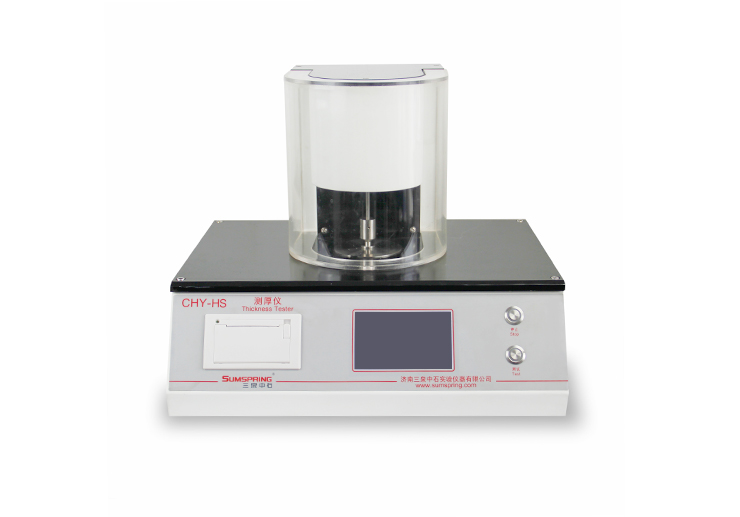

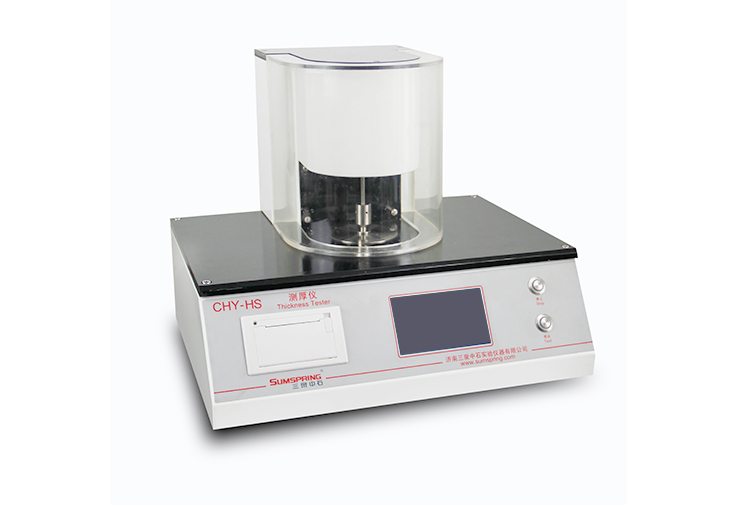

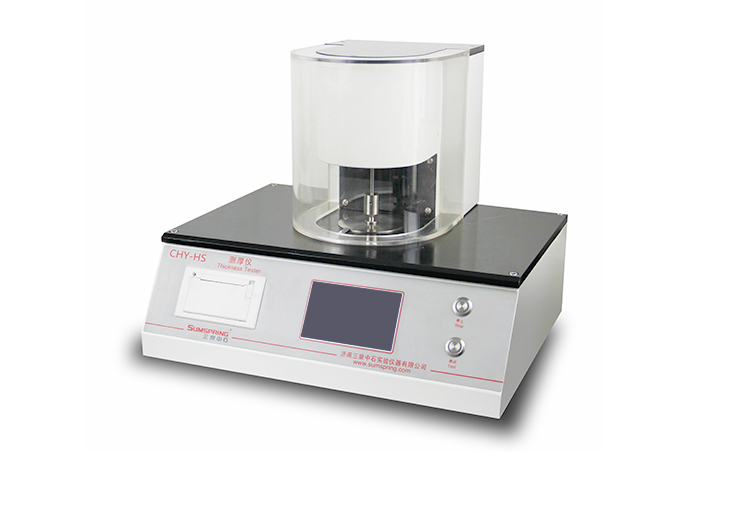

Thickness Tester CHY-HS



Test principle

Contact test principle. Interception of a certain size of the sample, the thickness of the measuring head automatically landed on the sample, the thickness of the test specimen relying on a fixed pressure and a fixed contact area .



 Application

Product

Name

Application

IMG_257

Film

Thickness tester used for test thickness of film

IMG_258 Aluminum foil Used for test thickness of aluminum foil
IMG_259 Solar wafers It is used for test thickness of solar wafers
IMG_260 Paper Used for test thickness of paper



Technical feature

★The instrument is controlled by micro-computer with large touchscreendisplay, Touchscreen operation panel and menu interface
★High-precision sensor ensures testing accuracy
★Contact area and pressure are strictly designed according to standard requirements, while customization is also available
★Automatic lifting presser foot facilitates to minimize system errors that caused by human factors during the test
★Manual or automatic operating mode for convenient test
★Thickness tester equipped with micro-computer, automatic statistics and printing functions are available which is convenient for the user to obtain the test results
★Print data of maximum, minimum, average and each testing result for data analysis
★Automatic save100 testing results, checking and printing at any time
★Standard block for system calibration ensures fast calibration of users
★Professional computer testing software displays differences of testing results of thickness tester Intuitively



Main Specification

Technical parameter

Test range

0-2mm (Stroke can be customized)

Resolution

0.1um

Test speed

10 Times/min(Adjustable)

Test Pressure

17.5±1kPa(Film);100±1kPa(Paper)

Contact area

50mm2(Film),200mm2(Paper) Note:Either Film or Paper

Injection step Moments 0 ~ 1300 mm(Adjustable)
Injection rate  0 ~ 120 mm/s(Adjustable)

Machine size

450mm×340mm×390mm

Net Weight

23kg

Environment requirements

Environment temperature

15℃-50℃

Test Environment   No vibration, no electromagnetic interference

Relative humidity

No more than 80%,no dewdrop

Power supply

220V,50Hz



Standards
ISO 4593, ISO 534, ISO 3034, ASTM D374,ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702



Configuration
Thickness tester standard Configurations: Mainframe and Standard Block (one set)
optional Configurations: Professional Software, Communication Cable, Presser Foot, Weight and auto sampling mechanism
