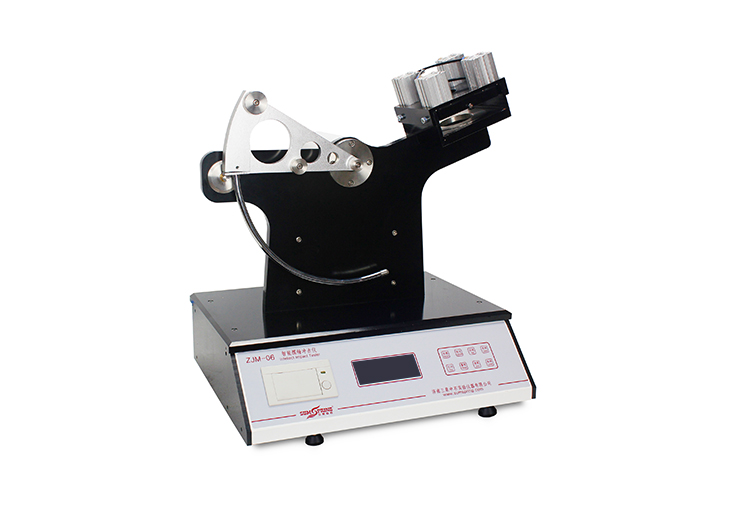

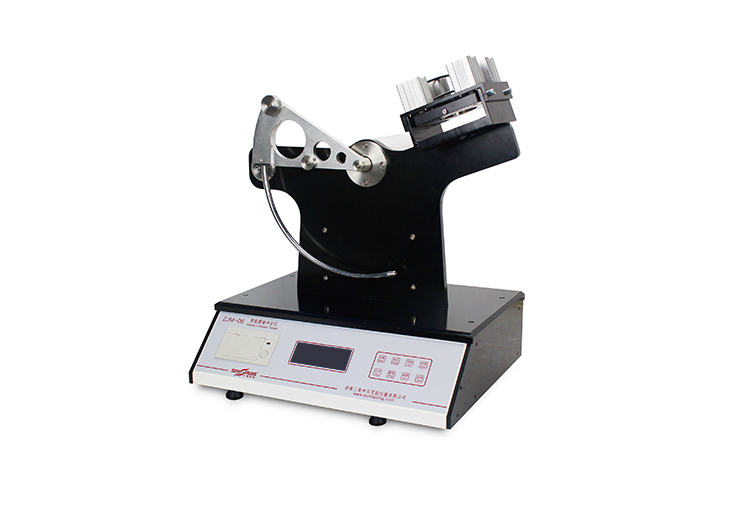

Auto Pendulum Impact Tester

Model:ZJM-06
Brand:Sumspring



Auto Pendulum Impact Tester ZJM-06 is professionally applicable to the determination of pendulum impact resistance properties of plastic films, laminated films, sheets, composite films, aluminum foils and other materials. Pendulum Impact tester is the necessary testing instrument for enterprises and quality inspection organizations.

Auto Pendulum Impact Tester ZJM-06



Test principle

Impact and break through the sample at a certain speed by the half round ball type punch to measure energy consumed by a punch to evaluate film pendulum impact energy value.



 Application

Product

Name

Application

IMG_257

Plastic film

Auto Pendulum Impact Tester is professionally applicable to the determination of pendulum impact resistance properties of plastic films, laminated films, sheets, composite films, aluminum foils and other materials.

IMG_258 Laminated films It is professionally applicable to the determination of pendulum impact resistance properties of plastic films, laminated films, sheets, composite films, aluminum foils and other materials.
IMG_259 Composite films Applicable to the determination of pendulum impact resistance properties of plastic films, laminated films, sheets, composite films, aluminum foils and other materials.
IMG_260

Aluminium foils

It is used for determination of pendulum impact resistance properties of plastic films, laminated films, sheets, composite films, aluminum foils and other materials.





Technical feature

★Auto pendulum impact tester is controlled by micro-computer, with large LCD display, menu interface and PVC operation panel
★Electronic measurement mode, test accuracy is up to 0.001J
★Pneumatic specimen clamping, pendulum release mechanism and automatic horizontal adjustment system effectively reduce the errors caused by manual operation
★Adjustable range and electronic measurement support various combinations of non-standard test conditions
★The system provides automatic statistics of testing data for users’ convenient viewing
★Micro-computer and RS232 port can be connected with computer, Professional software supports data statistics, analysisand printing



Main Specification

Technical parameter

Impact Energy

1J,2J,3J (Routine)

Resolution

0.001J

Punch Size

Ф25.4mm,Ф19mm,Ф12.7mm(Non-standard customized)

Sample Holder Diameter

Ф89mm,Ф60mm

Height Range ≤ 600mm
Sample Size 100 mm x 100 mm  or Ф100mm

Machine size

540mm×430mm×630mm

Weight

47Kg

Environment requirements

Air pressure 0.6MPa

Environment temperature

15℃-35℃

Relative humidity

No more than 80%,no dewdrop

Power supply

220V,50Hz



Standards
ASTM D3420, NFT54-116



Configuration

 Auto Pendulum Impact Tester host, Pendulums of 1 J, 2 J and 3 J, Standard Impact Heads of Ф25.4 mm and Ф19 mm, Standard Clamp Plates of Ф89 mm and Ф60 mm,Micro Printer, Professional Software, Communication Cable and O-ring



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
