Adhesive Tape Roller



Adhesive Tape Roller YGJ-HS is professionally designed for the determination of ink fastness of plastic films and glass paper decorating printed materials that utilize the intaglio printing technique. It could be used to test adhesive viscosity of various viscous materials.

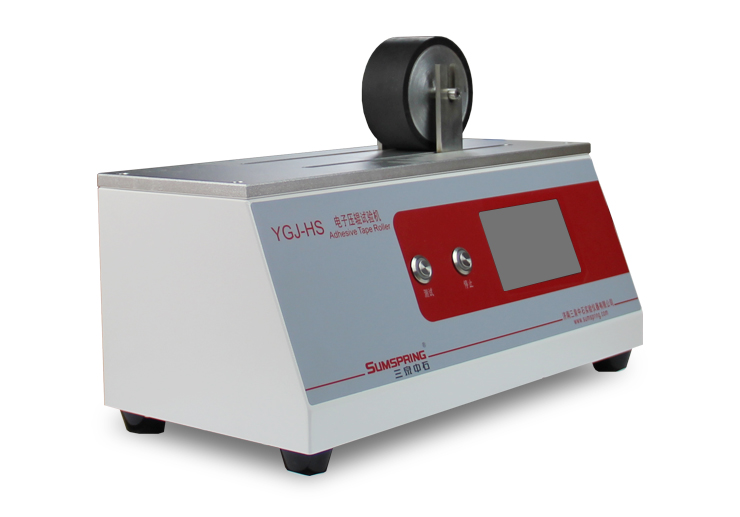

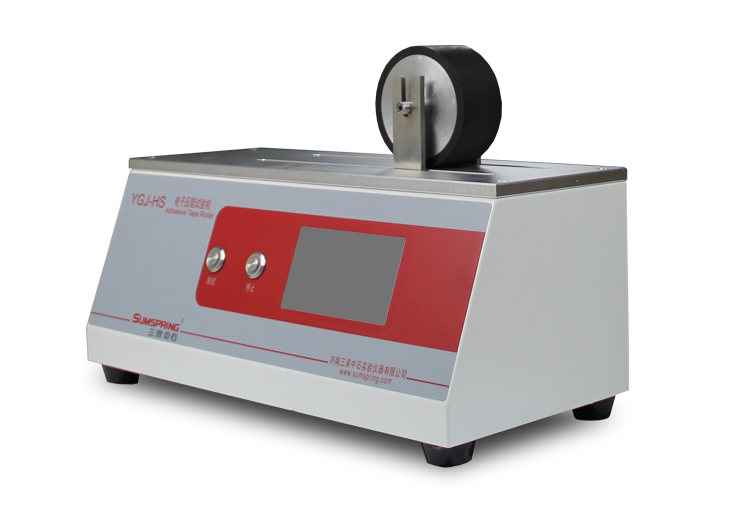

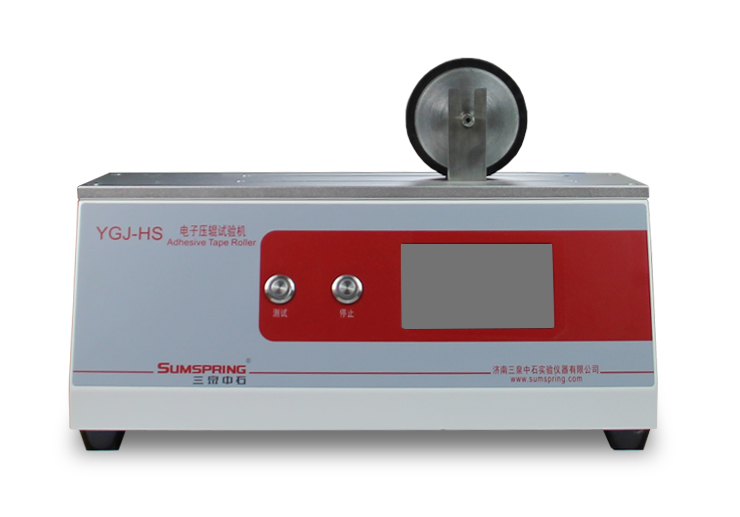

Adhesive Tape Roller YGJ-HS



Test principle

The standard glass adhesive tape should be bonded together with ink printing surface, which is pretreated according to test conditions, rolling by adhesive tape roller under specified load, rolling speed and rolling times. After a certain contacting time, separate them by disk stripping tester at certain pressure and peeling speed. The ink fastness property could be obtained by observing the ink layer peeling conditions.



Application

Name	Application
Plastic films printed matter,Decorating printed materials	Auto Roller Tester is professionally designed for the determination of ink fastness of plastic films and glass paper decorating printed materials
Glass paper printed matter	Auto Roller Tester is professionally designed for the determination of ink fastness of plastic films and glass paper decorating printed materials
Vacuum aluminized Films	It is used for the determination of ink fastness of plastic films and glass paper decorating printed materials
Surface coating materials	Auto Roller Tester is professionally designed for the determination of ink fastness of plastic films and glass paper decorating printed materials



Technical feature

★ Color touch screen control makes operation easier and data results more intuitive

★The rolling times, rolling distance and rolling speed can be set at will for easy use

★Micro computer control, small human factors

★Standard roller rolling or customized non-standard roller

★The system program has ISP online upgrade function and can provide personalized service

★High speed processing chip is adopted to greatly improve the operation speed



Main Specification

Technical parameter
Rolling Speed	0-600mm/min （stepless）
Pressure Roller Load	20N±0.5N
Roll  times	0~ 999 times
Machine size	400mm×220mm×300mm
Weight	17kg
Environment requirements
Environment temperature	15℃-50℃
Relative humidity	No more than 80%，no dewdrop
Power supply	220V,50Hz



Standards
JIS C2107，JIS Z0237，GB 7707，GB 2792



Configuration

Auto roller tester standard configurations:Mainframe, Standard Roller


Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
