Intelligent Tensile Tester



Intelligent Tensile Tester XLW (PC) -500N is used for testing tensile strength, peel strength, elongation rate , tear strength , heat seal strength, stopper puncture force, opening force combination, low unwind force and other performance for plastic films, laminated films, paper, rubber plug, the combination cover and other packaging materials and adhesive products.


Intelligent Tensile Tester with a long stroke 1000mm (1 meter) for a variety of large deformation material tensile strength test, especially for polyethylene film, multi-layer co-extruded film, black and white milk film. Premium test accuracy to meet the user requirements.It is an ideal testing machine for all inspection agencies, research institutions and major companies.

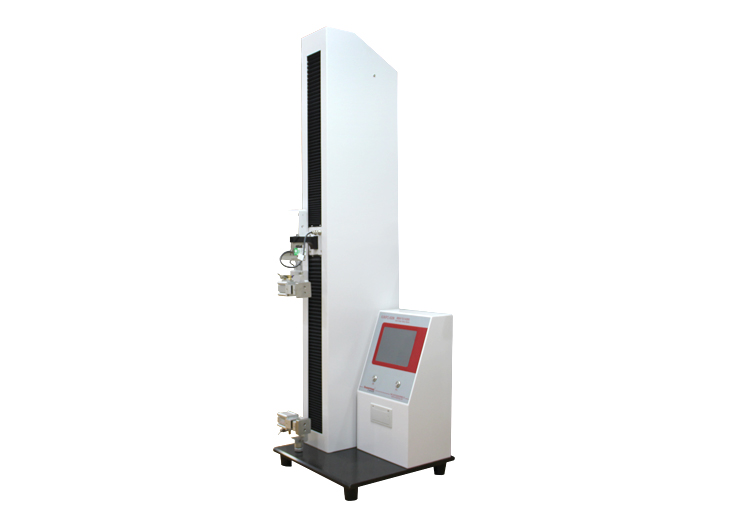

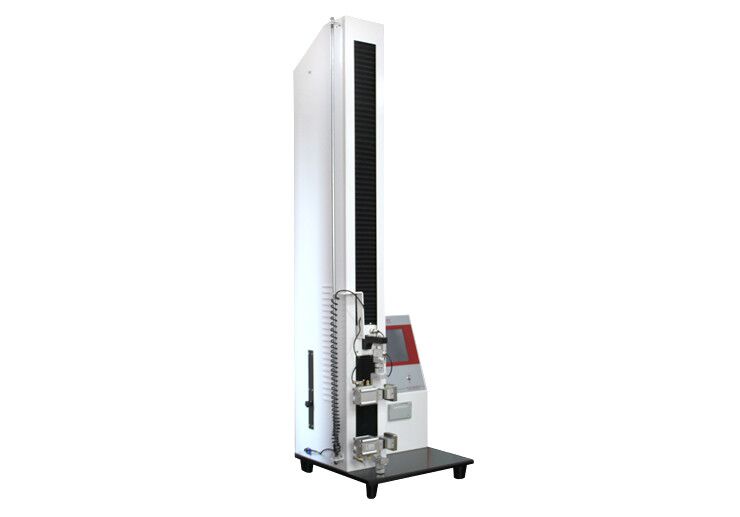

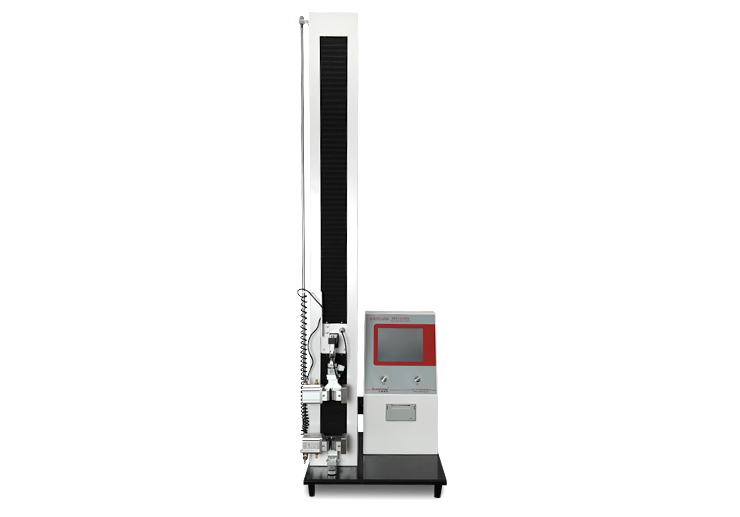

Intelligent Tensile Tester  XLW(PC)-500N


Test principle

The sample was clamped between two fixture chuck of adhesive tape tensile tester, two chuck do relative motion. Collect the strength and displacement changes in the progress of test by clamp head force value sensor and built-in displacement sensor to calculate the specimen tensile , tear, strain rate and other performance indicators.






Plastic film

Used for testing the tensile, deformation, tear, heat sealing, bonding and other properties of plastic film, composite material, flexible packaging material, plastic hose diaphragm and so on.

Composite film bag

Used for tensile, peeling, deformation, tear, heat sealing, bonding and other properties of plastic film and composite materials.


Used for tensile, peeling, deformation, tear, heat sealing, bonding and other performance testing of products such as paper and paper.

Adhesive tape

Tensile tester used for adhesive, adhesive tape, stickers, medical patch, paper and other products from stretching, stripping, deformation, tearing, heat sealing and adhesion test.

Butyl rubber stopper For the penetration of butyl glue and other related products, through the force performance test.
Infusion bag syringe Intelligent electronic tensile testing machine is used to test the tensile, deformation, tear, heat seal and other properties of the injection syringe and other products.
Combination cover Used for the tensile, peel, pull off force and other performance test of the combined cover and other related products.
Emplastrum Adhesive tape tensile tester used for adhesive, adhesive tape, stickers, medical patch, release paper, protective film products such as tensile, peeling, deformation and tearing performance test.


Technical Feature

★Thirteen independent test modes are available, including tensile strength, peeling force, tearing force and other force properties of flexible packages
★1000mm extra-long stroke satisfies the test needs of various materials with extreme elongation rate
★Two test range of load cells and 7distinct test speeds to meet different test requirements
★Excellent dynamometric system, 0.5% of full scale effectively ensure accurate test results
★Intelligent electronic tensile machine is controlled by micro-computer with menu interface, Large touch screen to display and  operate
★Intelligent designs of over-travel protection, overload protect, automatic position reset and power failure memory for safe test operation
★The instrument is designed by parameter setting, printing, view data, reset, calibration and other functions
★Computer storage testing data, can be checked by various forms
★Professional testing software, standard RS232 port, Network interface supports LAN centralized data management and internet information transmission


Main Specifications


Load Sell Capacity


Test Speed

1-500 mm/min (Continuously Variable)



Displacement Accuracy

± 0.5 %

Sample Width

30mm (Other fixtures can be customized)





Net weight





Relative Humidity

No more than 80%,no dewdrop

Power Supply



ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1 130,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753,GB 7754,GB 453,GB/T 17 200,GB/T 16578,GB/T 7122,GB/T 2790,GB/T 2791,GB/T 2792,ASTM E4,ASTM D828,ASTM D882,ASTM D1938



Standard configurations: Intelligent electronic tensile machine host, Computers, Micro-printer, Universal fixture, Professional software, Communication Cable, 500N or 50N sensor

Optional configurations: Standard Pressure Roller, Test Plate, Sample Cutter, 90 Degree peeling Grip, Puncture Grip and Customized Grips
