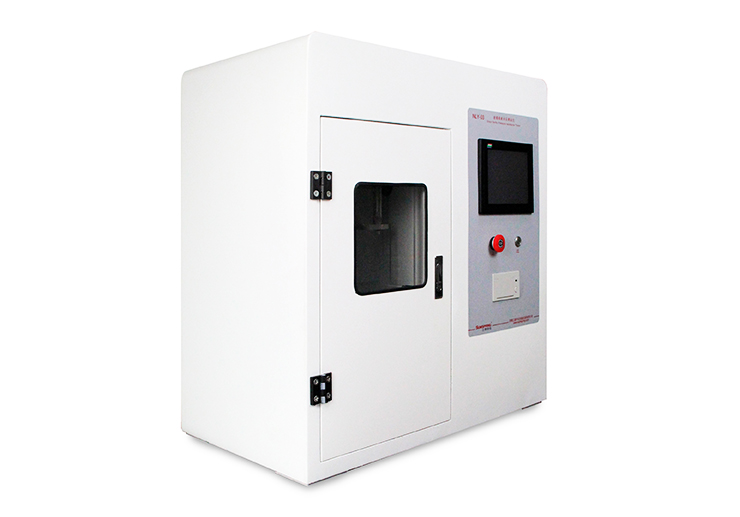

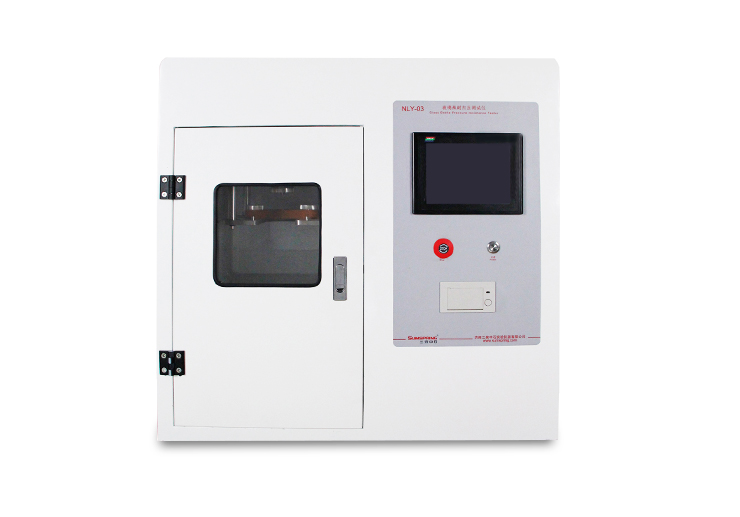

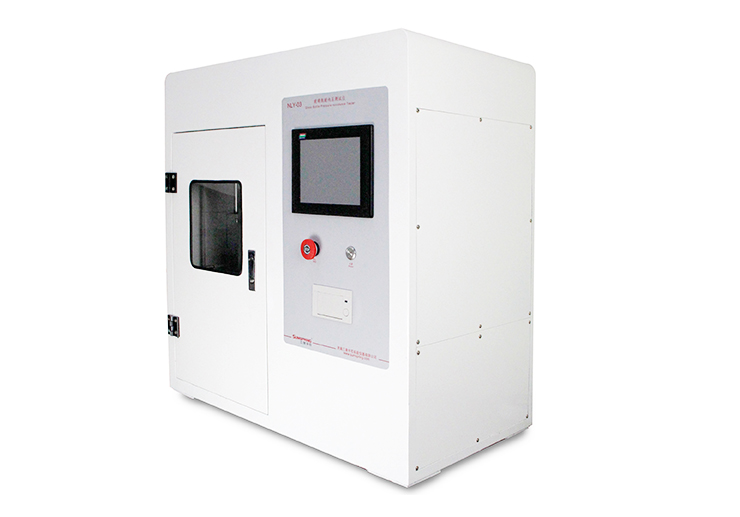

Glass Bottle Pressure Resistance Tester

Model:NLY-03
Brangd:Sumspring



Glass Bottle Pressure Resistance Tester NLY-03 is used for test bottle internal pressure for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotic resistance bottle .Show the whole experimental process automatically, bottle internal pressure tester can meet various glass holding pressure test and burst pressure test requirements, is the ideal testing instrument for quality inspection institutions, beverage production enterprises.

Glass Bottle Pressure Resistance Tester NLY-03



Test principle

The sample test plates affixed vertically hanging in the glass bottle ramp pressure tester test stand, the lower weight provided by weights hanging with displacement of the sample after a certain time off the stick, or the sample completely out of time to characterize the adhesive tape to resist the pull off capability.



Application

Product

Name

Application

IMG_257

Beer bottle

Glass bottle ramp pressure tester is used for a variety of beer bottles, wine bottles, beverage bottles and other types of glass bottle internal pressure test.

IMG_258 Infusion bottle

Pressure test and burst pressure test for glass bottles, such as infusion bottles, antibiotic bottles, etc..

IMG_259 Vials

Glass bottle internal pressure tester used for test internal pressure for moulding vial, antibiotic bottle.

IMG_258 Wine bottleI It is used for test ramp pressure tester for wine bottle



Technical Feature

★Four test mode completely meet standard requirements

★Touch screen operation, display test process

★Automatic watering function

★No complex hydraulic system, reduce leakage rate, easy maintenance

★User level authority management function to ensure the integrity and standardization of data

★Constant pressure keeping test ;and supercharge non-pressure test

★One key operation, display the whole test process

★Glass bottle ramp pressure testerEquipped with microprinter to print test result fast.

★Discard the traditional complex hydraulic system ,Reduce the leakage rate, easy to maintain



Main Specifications

TECHNICAL SPECIFICATIONS

Test Range

06 MPa

Test Accuracy

±1%

Resolution

 0.01MPa

Ramp pressure

0.4±0.1Mpa/s(5.8±1bar/s)

Dimension

800*450*800mm

Net weight

48kg

ENVIRONMENT REQUIREMENT

Temperature

15℃-50℃

Relative Humidity

No more than 80%,no dewdrop

Power Supply

220V,50Hz



Standard
ISO 7458:2004 、GB/T 4546-2008、 YBB00172003



Configuration

Glass Bottle Pressure Resistance Tester host,Microprinter



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
