Home    Medical package tester    Ampoule bottle break force tester

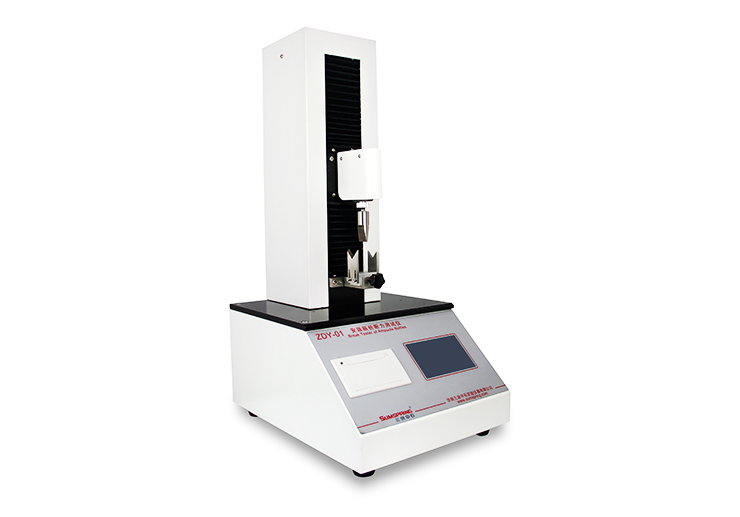

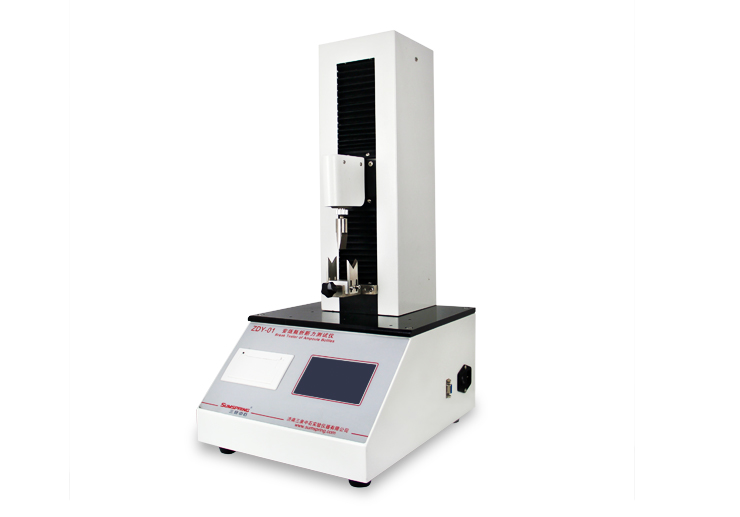

Ampoule bottle break force tester

Model:ZDY-01
Brand:Sumspring



Ampoule Bottles Break Force Tester ZDY-01 is mainly used to test breaking force of ampoule bottlenecks seperate from bottle. Ampoule bottle break force tester required to meet GB2637,YBB00332002 standards for frangible ampoule breaking power plant requirements. ZDY-01 fully autometic control mode, the large touch screen to display the entire testing process curve,automatically save print results.equipped with 1ml,25ml,10ml,20ml five test stand for quick replacement. With professional testing software,test results meet customer demands:long-term preservation. ZDY-01 is a high performance and easy to use which is highly appreciated by drug testing agency, ampoule production plants,pharmaceutical companies and other units.

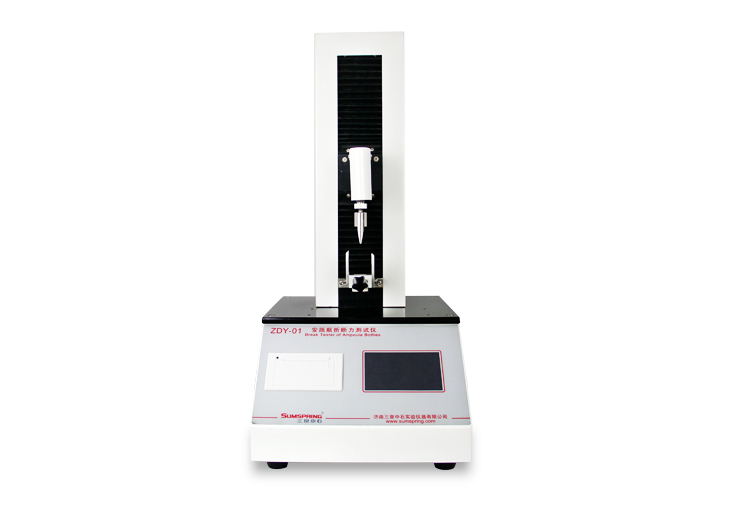

Ampoule Bottles Break Force Tester  ZDY-01



Test principle

Put ampoule bottle break force tester sample clamped between two chuck, two clip do relative movement, seperate bottleneck and body through special clamp head to test force value and displacement value change during the procedure and calculated the corresponding strength data.



Application

Product

Name

Application

Ampoule

Ampoule bottle break force tester test breaking force for seperate ampoule neck and body for  all capacity ampoule.



Technical feature

★The instrument is controlled by micro-computer , Large touch screen operation and display, Simple and fast HMI

★Professional computer software operating system to facilitate the users to connect a computer data storage, analysis and printing

★Imported sensor system, test the accuracy of force to break ahead in the industry, to effectively guarantee the accuracy of test results

★Compact structure, ingenious structure design, humanization

★Screw adjustable speed drive system to ensure the accuracy of the test speed and displacement

★Ampoule bottle break force tester is equipped with save and micro-printer fuction, fast printing results

★Professional humane fixture, which could be applied to replace the sample sizes

★Limit protection, automatic back intelligent configuration to ensure the safe operation of the user's



Main Specification

Technical parameter

Test range

0-300N (Other stroke customized)

Test accuracy

±0.5%

Test speed

10mm/min(1-500mm/min Stepless)

Speed accuracy

±2%

Bracket Distance

36,60mm

Machine size

310mm×400mm×560mm

Weight

26Kg

Environment requirements

Environment temperature

15℃-50℃

Relative humidity

No more than 80%,no dewdrop

Power supply

220V,50Hz



Standards
GB2367,YBB00332002



Configuration
Ampoule bottle break force tester host, microprinter,break force fixture,test fixture(1ml,2ml,5ml,10ml,20ml ),software,cable


Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
