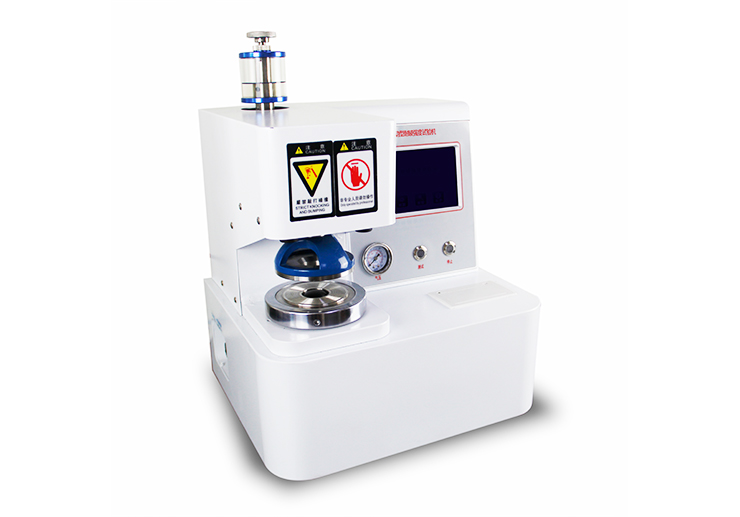

Cardboard bursting strength tester

Model:NPD-3000S
Brand:Sumspring



Cardboard bursting strength tester NPD-3000S is used for rupture strength test for pharmaceutical  aluminum foil. It is the basic instrument of physical strength properties of aluminum foil detection. NPD-3000S using automatic control mode, the user placed the sample between the upper and lower clamps, the instrument will automatically gripper, automatic punching test and print. Cardboard bursting strength tester is a dedicated high-performance automatic foil rupture strength meter is widely used in drug packaging manufacturers, pharmaceutical companies, drug testing and other institutions.

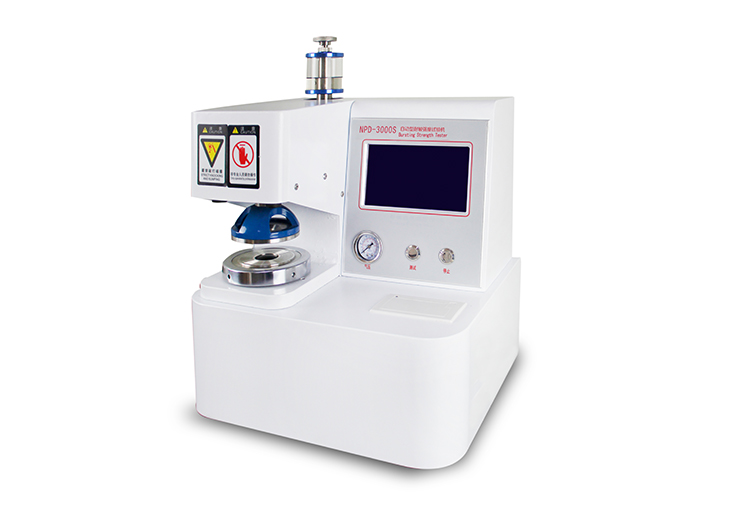

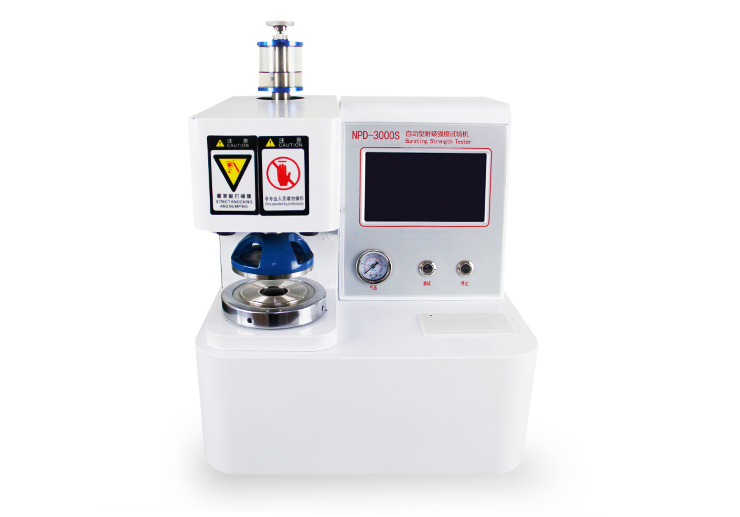

Cardboard bursting strength tester NPD-3000S



Test principle

Clamp sample on the elastic film on the two chuck, chuck clamp sample tightly, make the samples raised naturally with elastic film . when the hydraulic fluid at a steady rate of pumping, make the film projection until the broken sample, as the biggest pressure imposed by sample burst strength. chuck tightly clamped down around the sample, the sample together with film projections freedom. When the hydraulic fluid at a steady rate pumped, so that the elastic film raised until the sample is broken, the maximum pressure is the final result of bursting strength tester.



Application

Product

Name

Application

Corrugated board

 Cardboard bursting strength tester for various types of paperboard.



Technical Feature

★Large LCD testing process, Large touch screen operation and display, Simple and fast HMI

★Real-time display test pressure, automatically record the maximum, more intuitive

★Bursting strength tester design is simple and compact, with a small.

★Synchronous motor drive, smooth and accurate

★Rupture strength test data exclude the interference of the human factors

★Equipped with micro-printer, fast printing results

★Pneumatic clamping, one key operation in the test process to avoid errors



Main Specifications

TECHNICAL SPECIFICATIONS

Induction way

 Pressure transducer

Print data

Test values have average, time, date, and other data

Indication mode

Digital A/D value into the rate of 40 times /S, high test accuracy

Test range 150-5600 kPa(Accuracy 0.01kpa)

Hydraulic speed

175±5ml/min

Specimen clamping force

>690kPa

Motor

1/4HP

Dimension

400mm×350mm×500mm

Net weight

45kg

ENVIRONMENT REQUIREMENT

Temperature

15℃-35℃

Air Pressure  0.5MPa-0.7MPa

Relative Humidity

No more than 70%,no dewdrop

Power Supply

220V,50Hz



Standard
ISO 2758、YBB00152002,GB12255-90



Configuration

Cardboard bursting strength tester host, mini-printers, film, hydraulic oil



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
