Glass Bottle Heating Shock Resistance Tester

Model:RCY-03
Brand:Sumspring



Glass bottle heating shock resistance tester RCY-03 is used for the heating shock resistance test for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, bottle of antibiotics etc.. Heat shock is a glass container in a short period of time to withstand the impact of a certain temperature shock. The tester with the leakage protection device, safe and reliable performance.It  is ideal testing machine for quality inspection institutions, beer, pharmaceuticals, glass production enterprise .

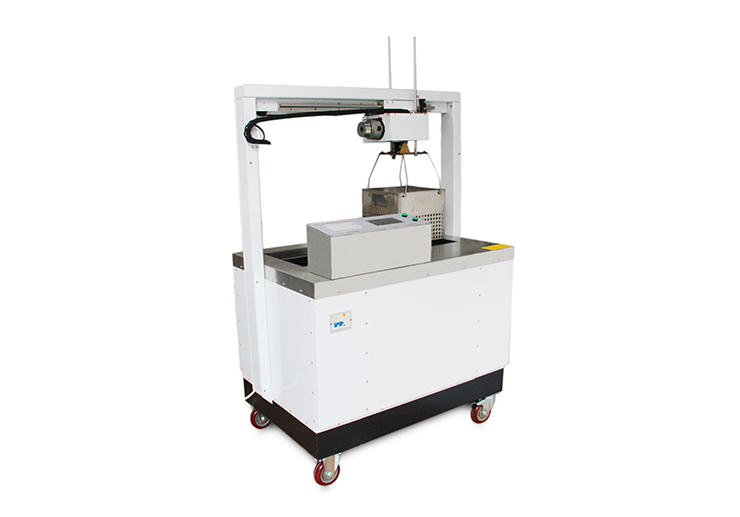

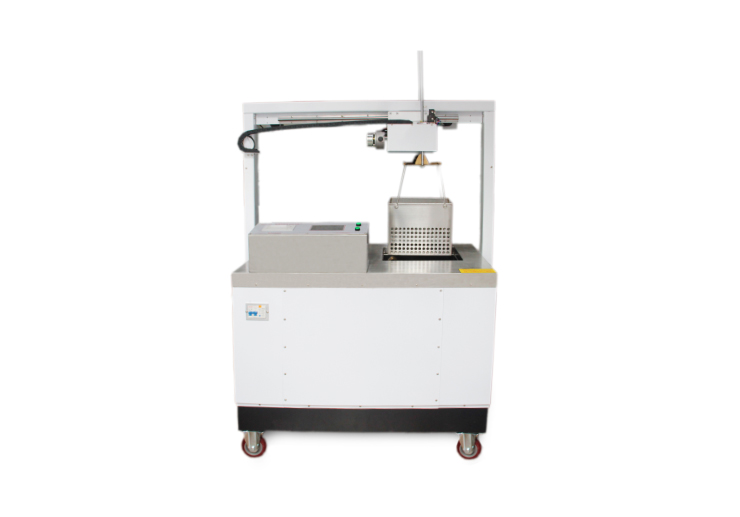

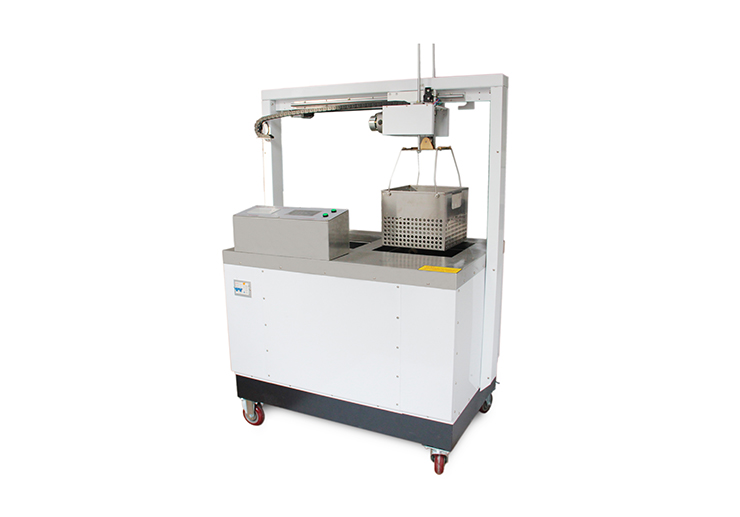

Glass bottle heating shock resistance tester RCY-03



Test principle

Setting temperature for high temperature tank and low temperature tank to make it reach preset temperature difference. A certain number of specimens in high temperature tank after high temperature heating, quickly placed into the low temperature tank, observe sample breakage.



Application

Product

Name

Application

IMG_257

Beer bottle

Glass bottle heating shock resistance tester is used for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle.

IMG_258

Liquor bottle, beverage bottle It is used for test heating shock resistance for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle.
IMG_259 Infusion bottle Used for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle.
IMG_260

 Antibiotics bottle

It is used for test heating shock resistance for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle.



Technical feature

★Microcomputer control technology, the experiment process automation degree is high
★Heating tank, cooling tank, sample cage adopt stainless steel material, durable
★Sample cage uses electric hoist is convenient to use and reduce staff strength
★Equipped with leakage protection device, safe and reliable performance
★Hot and cold water respectively automatic cycle, with double window thermostat, easy to operate



Main Specification

Technical parameter

Difference measuring range

0~60℃

Temperature control precision

±1℃

Capacity

High temperature tank  31L                     Low temperature tank   56L

Tank conversion time 10s±2s
Soaking time High temperature tank  15min                    Low temperature tank   30s

Machine size

880mm×530×1300mm

Weight

48Kg

Environment requirements

Environment temperature

5℃-40℃

Relative humidity

No more than 80%,no dewdrop

Power supply

220V,50Hz



Standards
ASTM C149-86 ,ISO/TC 63,ISO 7459:2004,BS EN 1183:1997,BS EN ISO7459,ISO/IEC 17025:2005



Configuration

Glass bottle thermal shock tester host, bottle basket, top and bottom water pipe


Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
