Coefficient of Friction Tester

Model:MXS-06
Brand:Sumspring



Coefficient of Friction Tester MXS-06 is applicable to the determination of static and kinetic coefficient of friction of plastic films, sheets, rubber, paper, PP woven bags,Non woven, fabric style. By testing the frictional coefficient, further smooth properties of plastic films, especially for packaging films.It is the perfect testing instrument for paper, packaging industries, quality and inspection institutions and other testing departments. Besides, the instrument can be used to measure smoothness of cosmetics, eye drops and other daily products.

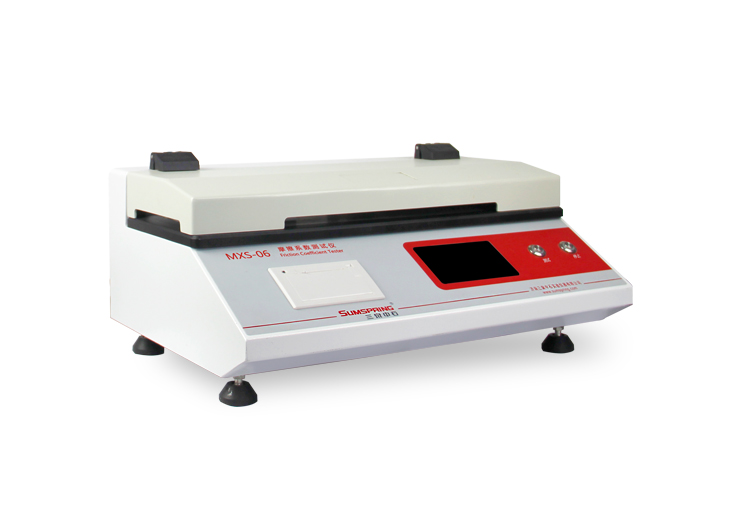

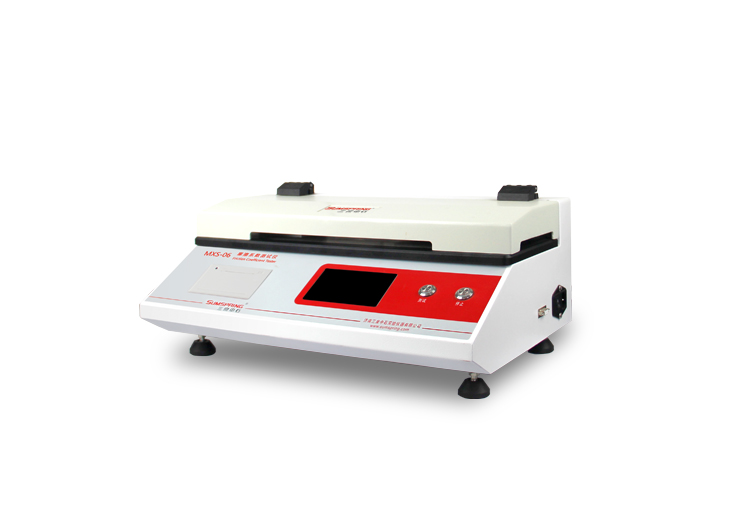

Coefficient of Friction Tester MXS-06



Test principle

Put two test surface flat together. Make the two surface relative move under a certain contact pressure and record the required force. The test force divided by the gravity of the slider from plastic film COF tester is the friction coefficient values.



Application

Product

Name

    Application

IMG_257

Plastic film

Test Static friction coefficient and dynamic friction coefficient for plastic film and sheet.

IMG_258 Composite membrane

Measure the static friction coefficient and dynamic friction coefficient of the composite film.

IMG_259 Paper

Coefficient of friction tester test the static friction coefficient and dynamic friction coefficient of the paper

IMG_260 Aluminum-plastic composite tape

Test  friction coefficient of friction for aluminum-plastic composite tape



Technical Feature

★The instrument is controlled by micro-computer , touch screen to operation and display
★Large touch screen display test curves, measuring coefficient of static and kinetic friction at the same time, which are convenient to the user for operation
★The sliding plane and the sled are treated by degaussing and remanence detection which be strict with the standard’s requirements
★Equipped with famous load cell, which has stable performance
★The functions of automatic delay timing ensures enough touching between tested specimens, improving the accuracy of testing results
★Equipped with micro printer, outputting testing results quickly
★Professional operating software supports the analysis、storage and compilation of original data, the number can up to 200



Main Specifications

  TECHNICAL SPECIFICATIONS

Load Range

0-5N(Optional)

Test Accuracy

0.5 FS

Stroke

70mm,150mm (can be set freely)

Slider Weight

200g,500g(Any Weight Available)

Slider Speed

100±10mm/min(Stepless)

Slider Size

63mm*63mm

Dimension

490mm×320mm×220mm

Net weight

30kg

ENVIRONMENT REQUIREMENT

Temperature

23±2℃

Relative Humidity

50±5% RH

Power Supply

220V,50Hz



Standard
ISO 8295,GB 10006,GB/T 17200



Configuration

Standard configurations: Plastic film COF tester mainframe, Micro-printer, Sled of 200g, Sled of 500g


Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please connet  the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry(master@sumspring.com).
