Plastic film universal tensile strength tester

Plastic film universal tensile strength tester  DLS-07  is used for dertermine tensile strength, peel strength, deformation rate, tear strength, heat seal strength, puncture power, low unwind force and other performance for plastic films, laminated films, bags, paper, plastic products, and other sticky materials. Plastic film universal tensile strength tester can be customized according to different test fixtures to meet various tension and compression tests. Rally stepless unique features to meet the speed requirements for different tests, is a multi-purpose test equipment welcomed by various inspection agencies, research institutions and food drug companies.

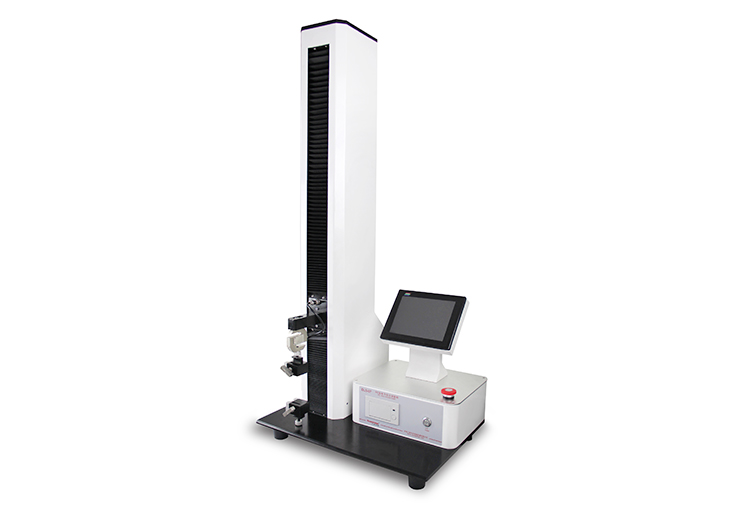

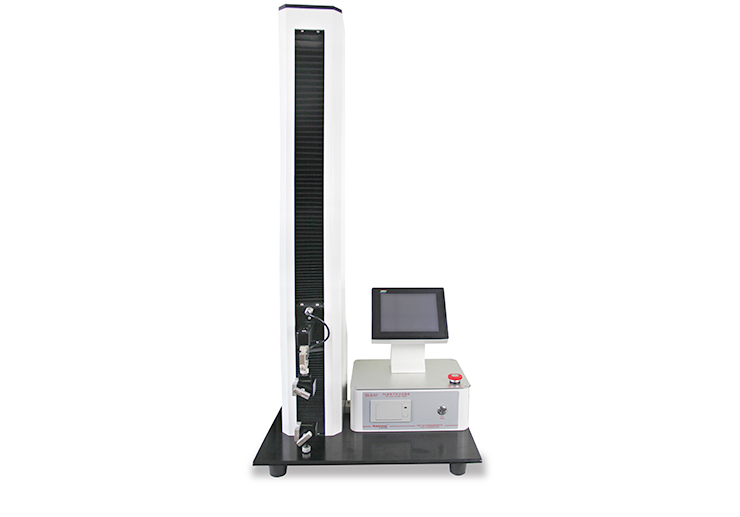

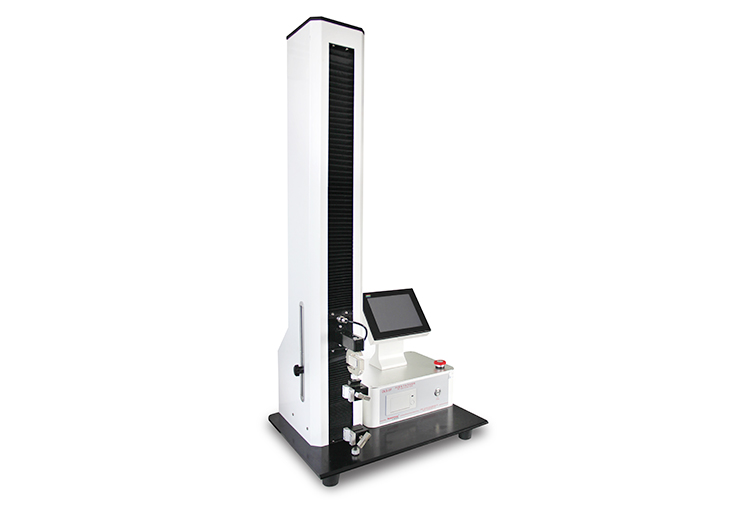

Plastic film universal tensile strength tester  DLS-07

Test principle

The sample was clamped between two fixture chuck of plastic film universal tensile strength tester, two chuck do relative motion. Collect the strength and displacement changes in the progress of test by clamp head force value sensor and built-in displacement sensor to calculate the specimen tensile , tear, strain rate and other performance indicators.

Application

Product	Name	Application
	Plastic film	Used for testing the tensile, deformation, tear, heat sealing, bonding and other properties of plastic film, composite material, flexible packaging material, plastic hose diaphragm and so on.
	Composite film bag	Used for tensile, peeling, deformation, tear, heat sealing, bonding and other properties of plastic film and composite materials.
	Paper	Used for tensile, peeling, deformation, tear, heat sealing, bonding and other performance testing of products such as paper and paper.
	Adhesive tape	Tensile tester used for adhesive, adhesive tape, stickers, medical patch, paper and other products from stretching, stripping, deformation, tearing, heat sealing and adhesion test.
	Butyl rubber stopper	For the penetration of butyl glue and other related products, through the force performance test.
	Infusion bag syringe	Intelligent electronic tensile testing machine is used to test the tensile, deformation, tear, heat seal and other properties of the injection syringe and other products.
	Combination cover	Used for the tensile, peel, pull off force and other performance test of the combined cover and other related products.
	Emplastrum	Plastic film universal tensile strength tester used for adhesive, adhesive tape, stickers, medical patch, release paper, protective film products such as tensile, peeling, deformation and tearing performance test.

Technical Feature

★Seven independent test modes are available, including tensile strength, peeling force, tearing force and other force properties of flexible packages
★Computer, microcomputer double operating systems can switch
Infinitely variable speed is available, within 1-500mm/mm
★Plastic film universal tensile strength tester is controlled by micro-computer with menu interface, PVC operation panel and large LCD display
★Intelligent designs of over-travel protection, overload protect, automatic position reset and power failure memory for safe test operation
★The instrument is designed by parameter setting, printing, view data, reset, calibration and other functions
★Computer storage testing data, can be checked by various forms
★Professional testing software, standard RS232 port, Network interface supports LAN centralized data management and internet information transmission.

Main Specifications

Standard

ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88,ASTM F904, JIS P8113

Configuration

Standard configurations: Plastic film universal tensile strength tester host, Universal fixture, Professional Software and Communication Cable
Optional configurations: Computer,Standard Pressure Roller, Test Plate, Sample Cutter, 90 Degree peeling Grip, Puncture Grip and Customized Grips

Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
