Wall thickness tester

Model:CHY-B2
Brand:Sumspring



Wall thickness tester CHY-B2 used for test wall thickness of ampoules, vials, infusion bottles, beer bottles, plastic bottles in food, medicine, cosmetics and other industries. Wall  thickness tester CHY-B2 has double test functions: bottom and sidewall. Test resolution up to 0.001mm. Wall thickness tester can satisfy various capacity bottle by adjusting the height , is a professional high precision bottle thickness testing instrument which is widely used in the quality inspection institutions, testing institutions, packaging materials manufacturers, pharmaceutical companies, food companies and other units.

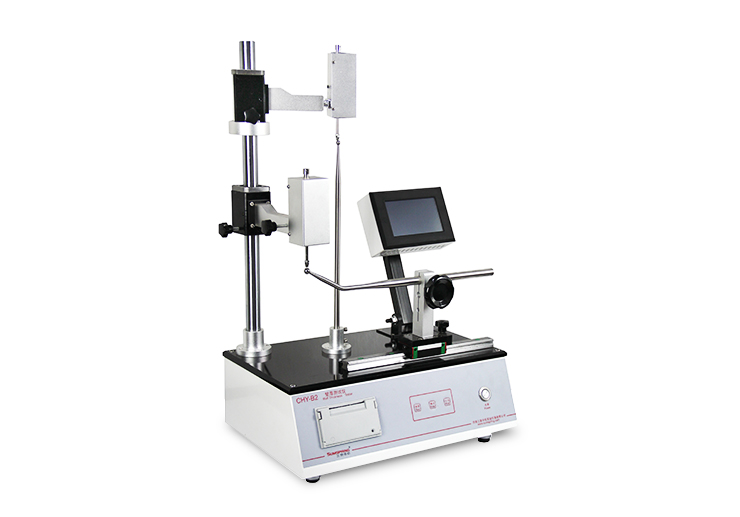

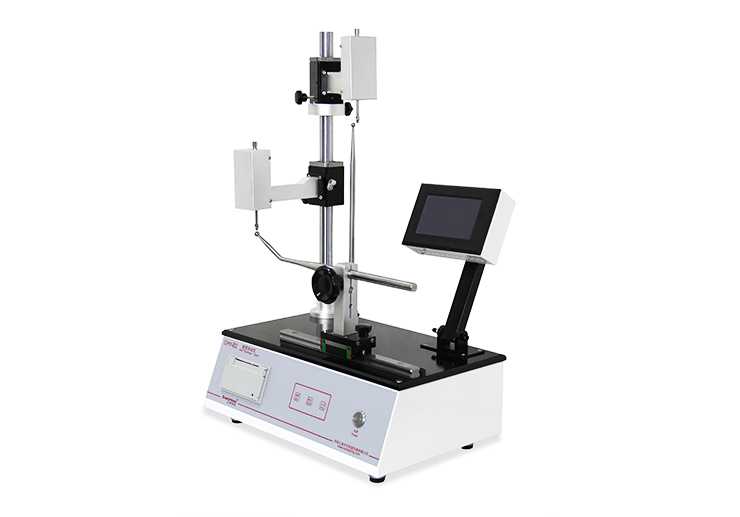

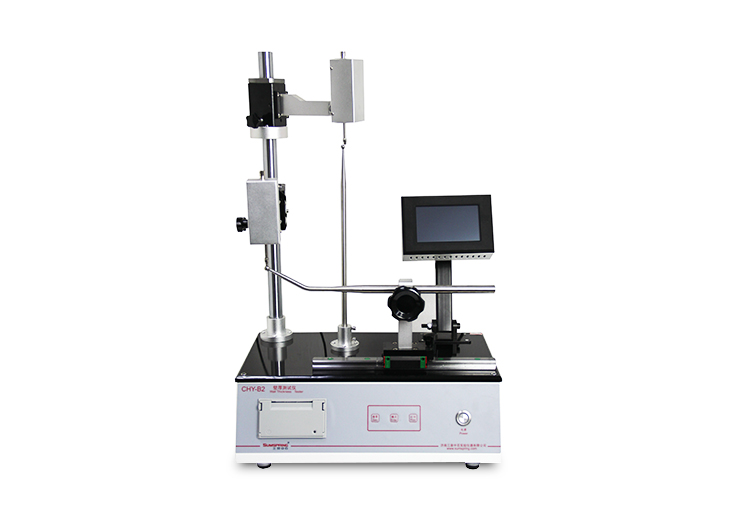

Wall thickness tester CHY-B2



Application

Product

Name

Application

IMG_257

Ampoule bottle

Test bottom and wall thickness for ampoules, vials, oral liquid bottles, infusion bottles

IMG_258 Medical glass bottle

Test bottom and wall thickness for ampoules, vials, oral liquid bottles, infusion bottles

IMG_259 Beer bottle

Used for measuring the thickness of medical bottle bottom and bottle wall.

IMG_260 Plastic bottle

Wall thickness tester is used for measuring the thickness of the bottom and the bottle wall of plastic bottles.



Technical Feature

★Using capacitive sensing technology, with digital display

★Touch screen, real-time display of measuring point position and thickness value

★Unique user management functions to ensure data integrity and standardization

★Equipped with micro printer, quickly print each measurement results and statistical maximum, minimum, average value.

★Instrument can store no less than 100 sets of data, each group of data 10 measuring results.

★Adjustable test space, used for a wide range of products

★Wall thickness tester can test both bottom and wall thickness

★Convenient and practical, cost-effective

★Test accuracy of 0.001mm, value of number accuracy and stability



Main Specifications

TECHNICAL SPECIFICATIONS

Thickness Range

0-12.5mm

Dividing Value

0.001mm

Specimen Diameter

10-120mm(Other size Customizable)

Height

10-290mm(Other size Customizable)

Dimension

420mmX280 mmX655 mm

Net weight

25kg

ENVIRONMENT REQUIREMENT

Temperature

15℃-50℃

Relative Humidity

No more than 80%,no dewdrop

Power Supply

220V,50Hz



Standard
GB12415-90,GB2641-90,GB2639-90



Configuration

Wall thickness tester host, measuring head



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
