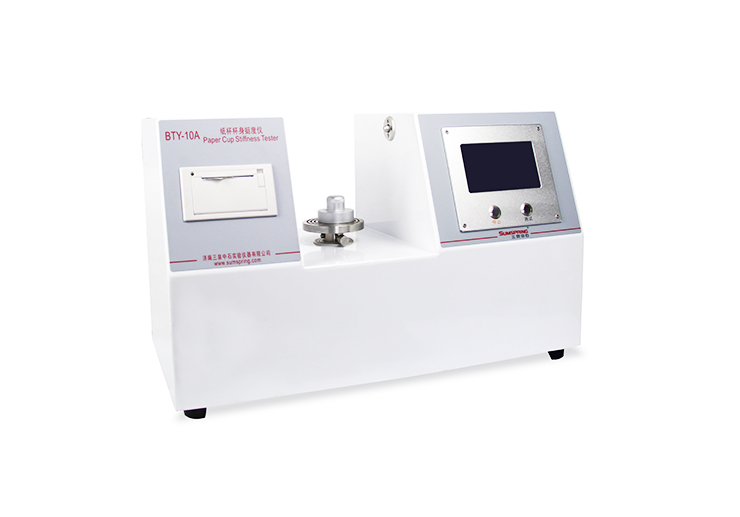

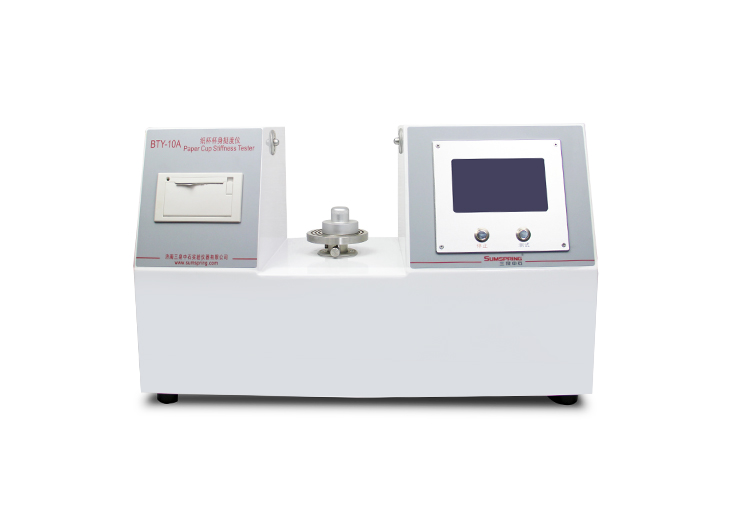

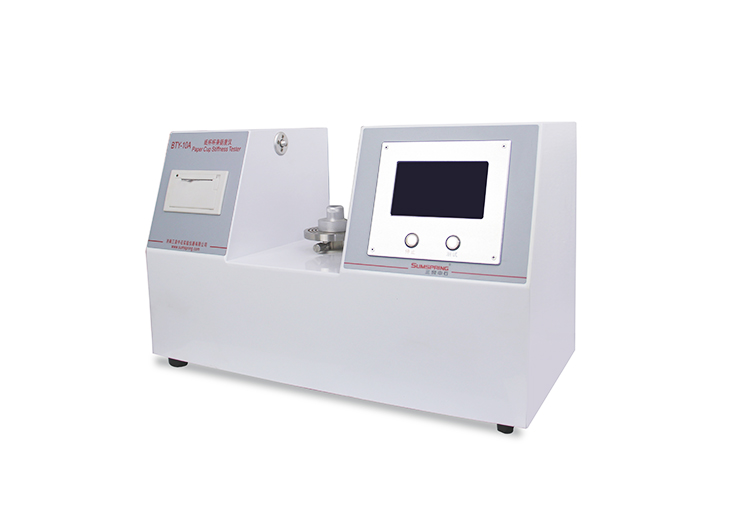

Paper cup stiffness tester

Model:BTY-10A
Brand:Sumspring



Paper Cup Stiffness Tester BTY-10 A (Dual head) designed for test cup body stiffness for capacity cups, bowls, disposable plastic cups, tea cups and other products. Imported brands sensor enable test results stable and reliable . Users simply placed the sample in the fixture, the cup body stiffness tester will finish the entire testing process automatically. Simple operation can avoid human error. It has become an ideal testing instrument for quality inspection agency, cup plant, food manufacturers and other units.

Paper Cup Stiffness Tester BTY-10A



Test principle

Put sample on the paper cup stiffness tester platform, make the probe vertical access to the sidewalls of the cup, adjust the bench to make the vertical distance of probe on the two-thirds of the cup.



Application

Product

Name

Application

IMG_258

Paper cup

Paper cup stiffness tester used for measure paper cup stiffness for fast food advertising paper cups, paper cups, disposable plastic cup

IMG_257 Bowl Measure cup body stiffness for disposable paper bowl, snack bowl bowl
IMG_260 Paper tea cup It is used for  measure paper cup stiffness for milk tea cup, drink cup of various sizes



Technical feature

★Microcomputer processing system, Large touch screen operation and display, Simple and fast HMI

★Imported brands sensing system to ensure accurate test data

★Automatic electronic test equipment, easy to use, test a wider range

★One-button operation to avoid human error

★Microcomputer system automatically determine the initial test status

★The relative distance between the two measuring heads can be preset on the touch screen to save test time

★Paper cup stiffness tester equipped with micro-printer for quick output data

★Double-headed structure design, screw drive mode, the test data is more accurate

★Built-in automatic tray lifting mechanism, a high degree of automation



Main Specification

Technical parameter

Test range



0-20N



Cup Caliber

20~150mm



Resolution

0.01N



Indication Accuracy

±1%



Test Speed



50±2.5mm/min



Deformation



9.5± 0.5mm



Measured Height



30~150mm

Machine Size

560mmX270mmX350mm

Net Weight

34kg

Environment requirements

Environment temperature

15℃-35℃

Relative humidity

No more than 70% RH

Power supply

220V,50Hz



Standards
QB/T 2294-1997,JJG157, GB/T 27590,QB/T 5023



Configuration
Paper cup stiffness tester Host, micro-printer




Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
