Lasting Adhensive Tester



Lasting Adhensive Tester CNY-03S used for test holding adhesive force for adhesive tape, labels, protective films. Three-station design could test three samples tested at the same time. Automatic timing may also be turned into a fully automatic hold stick instrument, widely used in adhesives products manufacturers, quality inspection agencies and other units.

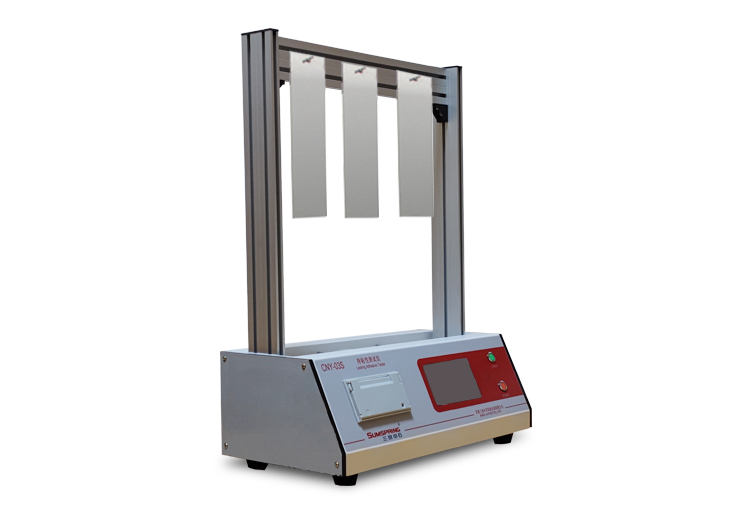

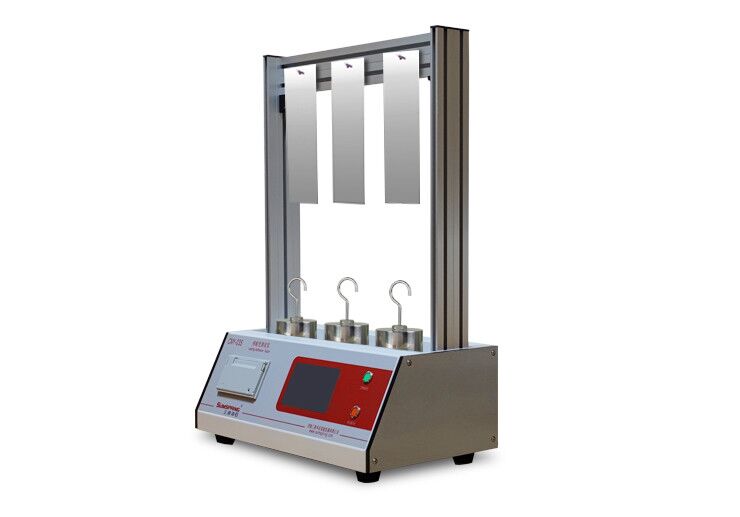

Lasting Adhensive Tester CNY-03S



Test principle

The sample test plates affixed vertically hanging in the test stand, test the displacement value of sample after a certain time by hanging weight on the bottom; or test adhesive tape pulled off resistance performance by the time sample completely break away .



Application

Name	Application
Adhesive tape	Adhesion test for adhesive tape, label, protective film, etc.
Medical adhesive tape	Detection of adhesive for medical adhesive tape.
Pressure sensitive adhesive	Adhesive holding power tester is used for a long time viscosity test for adhesive and other related products.
Medical patch	It is used for the detection of the medical patch adhesion testing



Technical Feature

★Large touch screen testing process, without the help of computers, the host can operate independently, and can store and query test results, eliminating the tedious need to connect computers in each test.

★Equipped with micro printer, it can print complete test information such as equipment serial number, sample batch number, experimenter, test result, test time, etc.

★The test board and weights designed strictly in accordance with the standard ensure the accuracy of the test data.

★Six test stations can carry out multiple test projects at the same time.

★The functions of automatic timing and end reminder further ensure the high accuracy of test results.

★The instrument can store no less than 100 sets of data, each of which contains 6 data sets.

★The system program has ISP online upgrade function and can provide personalized service.



Main Specification

Technical parameter
Standard Roller	2000g±50 g
Weight	1000g、500g、200g（One option）
Test Broads	125（L）×50（W）×1.1（D）mm  125（L）x125（B）x2（D）mm）
Timing Range	0～199.99Hours
Machine size	620mmX260mmX420mm
Weight	10Kg
Environment requirements
Environment temperature	15℃-50℃
Relative humidity	No more than 80%，no dewdrop
Power supply	220V,50Hz



Standards

ASTM D3654，JIS Z0237，Pharmacopoeia 2021,GB/T 4851，YY/T 0148 ASTM D3654，GB/T23260



Configuration

Adhesive tester host, Standard Pressure Roller, Breadboard six pairs,Weight6
